Using Encryption with EBS-Backed AMIs

AMIs that are backed by Amazon EBS snapshots can take advantage of Amazon EBS encryption. Snapshots of both data and root volumes can be encrypted and attached to an AMI. The AMI management tools to launch instances and copy images support encryption options that include on-the-fly changes to encryption state. Encryption parameters for these operations are supported in all regions where AWS KMS is available.

EC2 instances with encrypted EBS volumes are launched from AMIs in the same way as other instances. In addition, when you launch an instance from an AMI backed by unencrypted EBS snapshots, you can encrypt some or all of the volumes during launch.

Like EBS volumes, snapshots in AMIs can be encrypted to either your default AWS Key Management Service customer master key (CMK), or to a custom key that you specify. You must in all cases have permissions to use the selected key.

AMIs with encrypted snapshots can be shared across AWS accounts. For more information, see Shared AMIs.

Instance-Launching Scenarios

Amazon EC2 instances are launched from AMIs using the RunInstances action with parameters supplied through block device mapping, either by means of the AWS Management Console or directly using the Amazon EC2 API or CLI. For more information about block device mapping, see Block Device Mapping. For examples of controlling block device mapping from the AWS CLI, see Launch, List, and Terminate EC2 Instances.

By default, without explicit encryption parameters, a RunInstances action maintains the existing encryption state of an AMI's source snapshots while restoring EBS volumes from them. You can also launch an instance and simultaneously apply a new encryption state to the resulting volumes by supplying encryption parameters. Consequently, the following behaviors are observed:

Launch with no encryption parameters

  • An unencrypted snapshot is restored to an unencrypted volume.

  • An encrypted snapshot that you own is restored to a volume that is encrypted to the same CMK.

  • An encrypted snapshot that you do not own (i.e., the AMI is shared with you) is restored to a volume that is encrypted to your AWS account's default CMK.

The default behaviors can be overridden by supplying encryption parameters. The available parameters are Encrypted and KmsKeyId. Setting only the Encrypted parameter results in the following:

Instance launch behaviors with Encrypted set, but no KmsKeyId specified

  • An unencrypted snapshot is restored to an EBS volume that is encrypted to your AWS account's default CMK.

  • An encrypted snapshot that you own is restored to an EBS volume encrypted to the same CMK. (In other words, the Encrypted parameter has no effect.)

  • An encrypted snapshot that you do not own (i.e., the AMI is shared with you) is restored to a volume that is encrypted to your AWS account's default CMK. (In other words, the Encrypted parameter has no effect.)

Setting both the Encrypted and KmsKeyId parameters allows you to specify a non-default CMK for an encryption operation. The following behaviors result:

Instance with both Encrypted and KmsKeyId set

  • An unencrypted snapshot is restored to an EBS volume encrypted to the specified CMK.

  • An encrypted snapshot is restored to an EBS volume encrypted not to the original CMK, but instead to the specified CMK.

Submitting a KmsKeyId without also setting the Encrypted parameter results in an error.

The following sections provide examples of launching instances from AMIs using non-default encryption parameters. In each of these scenarios, parameters supplied to the RunInstances action result in a change of encryption state during restoration of a volume from a snapshot.

Note

For detailed console procedures to launch an instance from an AMI, see Launch Your InstanceLaunch Your Instance.

For documentation of the RunInstances API, see RunInstances.

For documentation of the command run-instances in the AWS Command Line Interface, see run-instances.

Encrypt a Volume during Launch

In this example, an AMI backed by an unencrypted snapshot is used to launch an EC2 instance with an encrypted EBS volume.

Launch instance and encrypt volume on the fly

The Encrypted parameter alone results in the volume for this instance being encrypted. Providing a KmsKeyId parameter is optional. If no key ID is specified, the AWS account's default CMK is used to encrypt the volume. To encrypt the volume to a different CMK that you own, supply the KmsKeyId parameter.

Re-Encrypt a Volume during Launch

In this example, an AMI backed by an encrypted snapshot is used to launch an EC2 instance with an EBS volume encrypted to a new CMK.

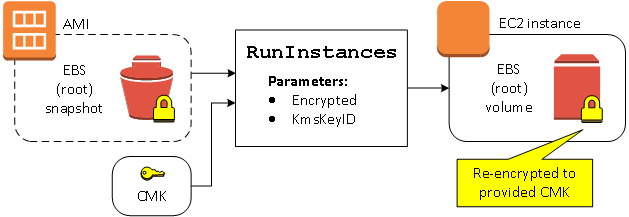

Launch instance and re-encrypt volume on the fly

If you own the AMI and supply no encryption parameters, the resulting instance has a volume encrypted to the same key as the snapshot. If the AMI is shared rather than owned by you, and you supply no encryption parameters, the volume is encrypted to your default CMK. With encryption parameters supplied as shown, the volume is encrypted to the specified CMK.

Change Encryption State of Multiple Volumes during Launch

In this more complex example, an AMI backed by multiple snapshots (each with its own encryption state) is used to launch an EC2 instance with a newly encrypted volume and a re-encrypted volume.

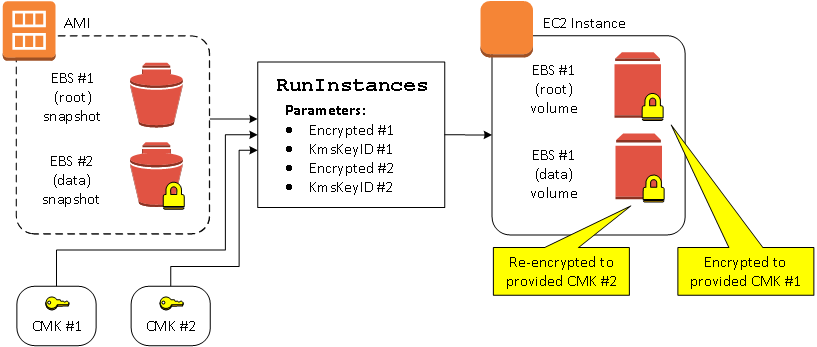

Encrypt and re-encrypt multiple volumes during launch

In this scenario, the RunInstances action is supplied with encryption parameters for each of the source snapshots. When all possible encryption parameters are specified, the resulting instance is the same regardless of whether you own the AMI.

Image-Copying Scenarios

Amazon EC2 AMIs are copied using the CopyImage action, either through the AWS Management Console or directly using the Amazon EC2 API or CLI.

By default, without explicit encryption parameters, a CopyImage action maintains the existing encryption state of an AMI's source snapshots during copy. You can also copy an AMI and simultaneously apply a new encryption state to its associated EBS snapshots by supplying encryption parameters. Consequently, the following behaviors are observed:

Copy with no encryption parameters

  • An unencrypted snapshot is copied to another unencrypted snapshot.

  • An encrypted snapshot that you own is copied to a snapshot encrypted with the same key.

  • An encrypted snapshot that you do not own (i.e., the AMI is shared with you) is copied to a snapshot that is encrypted to your AWS account's default CMK.

All of these default behaviors can be overridden by supplying encryption parameters. The available parameters are Encrypted and KmsKeyId. Setting only the Encrypted parameter results in the following:

Copy-image behaviors with Encrypted set, but no KmsKeyId specified

  • An unencrypted snapshot is copied to a snapshot encrypted to the AWS account's default CMK.

  • An encrypted snapshot is copied to a snapshot encrypted to the same CMK. (In other words, the Encrypted parameter has no effect.)

  • An encrypted snapshot that you do not own (i.e., the AMI is shared with you) is copied to a volume that is encrypted to your AWS account's default CMK. (In other words, the Encrypted parameter has no effect.)

Setting both the Encrypted and KmsKeyId parameters allows you to specify a custom CMK for an encryption operation. The following behaviors result:

Copy-image behaviors with both Encrypted and KmsKeyId set

  • An unencrypted snapshot is copied to a snapshot encrypted to the specified CMK.

  • An encrypted snapshot is copied to a snapshot encrypted not to the original CMK, but instead to the specified CMK.

Submitting a KmsKeyId without also setting the Encrypted parameter results in an error.

The following section provides an example of copying an AMI using non-default encryption parameters, resulting in a change of encryption state.

Note

For detailed console procedures to copy an AMI, see Copying an AMI.

For documentation of the CopyImage API, see CopyImage.

For documentation of the command copy-image in the AWS Command Line Interface, see copy-image.

Encrypt an Unencrypted Image during Copy

In this scenario, an AMI backed by an unencrypted root snapshot is copied to an AMI with an encrypted root snapshot. The CopyImage action is invoked with two encryption parameters, including the choice of a CMK. As a result, the encryption status of the root snapshot changes, so that the target AMI is backed by a root snapshot containing the same data as the source snapshot, but encrypted using the specified key. You will incur storage costs for the snapshots in both AMIs, as well as charges for any instances you launch from either AMI.

Copy AMI and encrypt snapshot on the fly

The Encrypted parameter alone results in the single snapshot for this instance being encrypted. Providing a KmsKeyId parameter is optional. If none is specified, the default CMK of the AWS account is used to encrypt the snapshot copy. To encrypt the copy to a different CMK that you own, supply the KmsKeyId parameter.

Note

You can also copy an image with multiple snapshots and configure the encryption state of each individually.
