MPSoC Design Research Papers

Power- and performance-aware IP mapping for NoC-based MPSoC platforms

2026, 2010 17th IEEE International Conference on Electronics, Circuits and Systems

In this paper, we address the performance of MPSoC platforms with homogeneous processing nodes, where the cores generate and consume the large amount of data, thus the system approaches congestion. Mostly, the time dependent media... more

descriptionView Paper arrow_downwardDownload

Model-driven reliability evaluation for MPSoC design

by Anthony Mouraud

2025, 2017 Conference on Design and Architectures for Signal and Image Processing (DASIP)

HAL is a multi-disciplinary open access archive for the deposit and dissemination of scientific research documents, whether they are published or not. The documents may come from teaching and research institutions in France or abroad, or... more

descriptionView Paper arrow_downwardDownload

Random Task Scheduler Algorithms as a Comparison and Access to the Best to Use in Real Time

by Haeder Talib Mahde Alahmar

2024

Today's real-time systems are the core of most ICT applications. The rapid development of such systems has attracted researchers' attention to optimize performance and to minimize as much as possible the problems and disadvantages they... more

descriptionView Paper arrow_downwardDownload

New voter design enabling hot redundancy for asynchronous network nodes

by Omar A.Emam

2024, 2014 NASA/ESA Conference on Adaptive Hardware and Systems (AHS)

In this paper, a novel voter design is presented which allows the voting of asynchronous network streams in flow-controlled networks. The voter synchronises incoming data streams automatically and is able to handle failure modes that... more

Modern payload data processing approaches on board spacecraft demand increased processing capabilities. In best case, data can be processed in real time while being streamed from a data source to a data sink, e.g. from a camera to a mass memory device. On its way, the data is possibly processed by several processor nodes in series. Fig. 1. Example for an image processing pipeline. An example would be an image processing pipeline as outlined in Figure | in which video data is first filtered, then -ompressed and finally encrypted. To make such a processing dipeline adaptable in terms of functionality and reliability, he different processing steps can be implemented on recon- igurable Field Programmable Gate Arrays (FPGAs). Since fast hardware implementations of the processing steps can be rather resource-demanding, techniques are necessary to also >xploit Multi-FPGA systems. An example for such a system is the Dynamically Reconfigurable Processing Module (DRPM) Jeveloped by University of Braunschweig and Airbus Defence and Space, UK [1]. This hardware development platform comprises a scalable number of payload data processing units with two reconfigurable SRAM-based Virtex-4 FPGAs and one LEON3 microprocessor per unit. The development platform is available for our own research on an adaptive Fault Detection,

Fig. 2. Stream Processor Architecture. In the proposed FDIR framework, the aforementioned processing steps are executed by dedicated stream processors which can process incoming data streams independently. A typical architecture of such a stream processor is shown in Figure 2. An IP core of the desired functionality is em- bedded into a wrapper. This wrapper comprises a Network on Chip (NoC) interface for the data exchange, some state machine logic and a memory for state variables. Input control words are interpreted by the state machine while input data words are directly fed into the IP core. An additional memory holds all variables necessary to configure the IP core. If the processing pipeline uses a specific protocol, a protocol parser and/or protocol generator may be added to the input and output of the core. Partitions which can host such a stream processor are implemented on SRAM-based FPGAs. They are connected to a packet-switched, flow-controlled NoC and can be reconfigured during operation by means of dynamic partial reconfiguration.

Fig. 8. State diagram of the voter sub-module. Fig. 7. Circuit of the non-blocking broadcast mechanism. by the embedded Word-Voter [12] which is implemented as follows:

Fig. 5. Different failure modes that can be observed in network streams. [V. FAILURE MODES AND THEIR EFFECTS

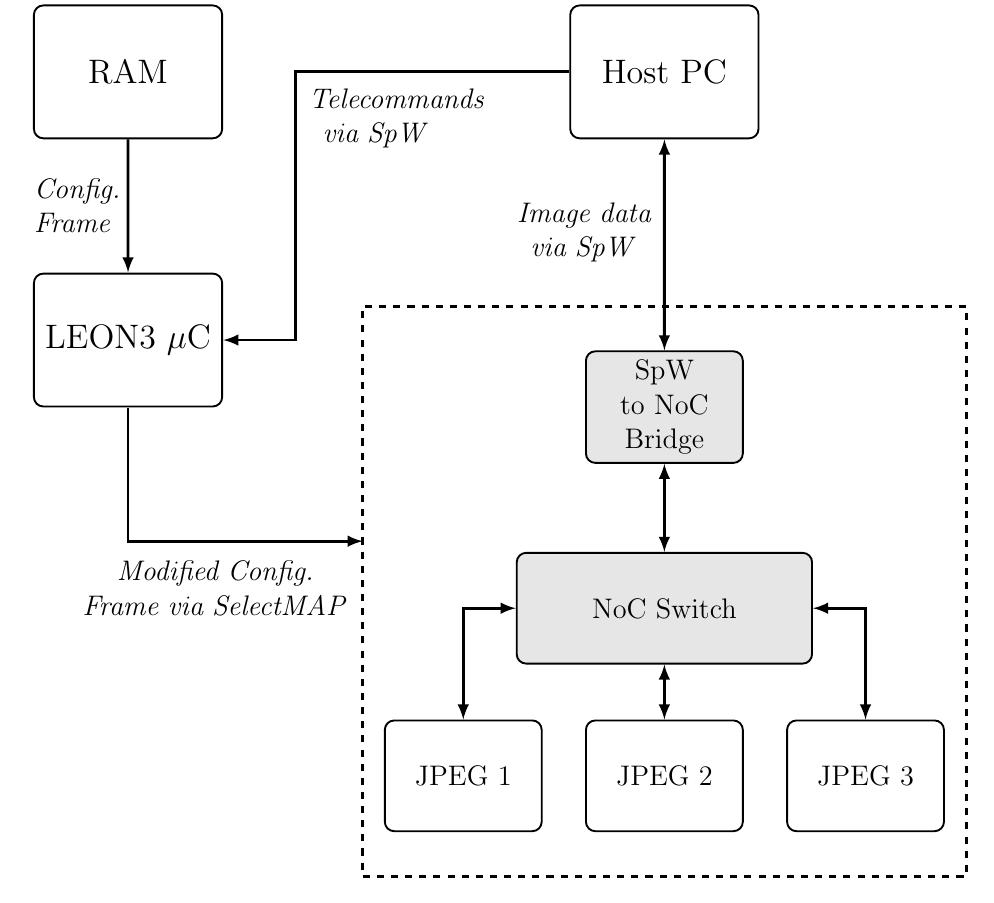

Fig. 9. Fault injection system. The voter module has been successfully implemented on a Xilinx Virtex-4 SX55 FPGA as part of the DRPM hardware system, see Section I. If the network data width is chosen to be 16 bit wide, the design occupies 1,237 slices (5%) and the achievable clock frequency (after place & route and without further timing constraints) is ca. 107 MHz, i.e. the design can easily handle data streams with throughput rates of 1.6 and more Gbit/s. The utilisation of logic resources is ruled by the four NoC interfaces.

The signal slot_status(3:1) is a register which stores the health status of each slot and which can also be updated by an external instance. The registration of the new status is done in several steps. If a write enable signal is active, the new status is temporarily stored and a pending flag is set for each updated slot.

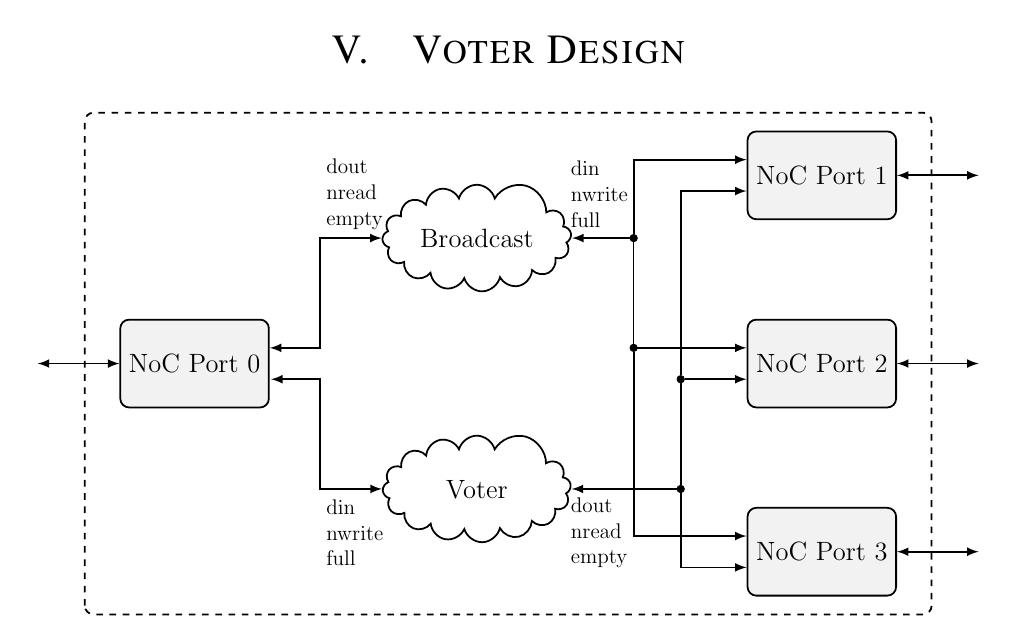

repaired processor into the running voting process as soon as possible. Fig. 6. Block diagram of the voter module.

Fig. 3. Flow-control mechanism between two network nodes.

‘ig. 4. Distributed Failure Detection: Example network topology. The paper is structured as follows. In Section II, the motivation for the development of the new voter design is explained. In Section II, a brief overview of related work is given. In Section IV, different failure modes are analysed which must be anticipated to occur in the output network streams of processors. Based on this analysis, a robust voter design is proposed in Section V which is able to cope with all failure modes found. Finally, in Section VI, a hardware imple- mentation is evaluated by means of fault injection experiments.

3) State S3: This state is entered once the timeout has expired in state S2, i.e. not every healthy slot received a packet. The state is left under three possible conditions. If only two slots were healthy before, all slots must be marked as faulty and the state machine moves to idle state $1. If all slots were healthy and two packets arrived, the slot without packet is marked as faulty and the state machine moves on to state S4. If three slots were healthy and only one packet arrived, the slot in which this packet arrived is marked as faulty and the Last Resort Timeout value is loaded into the timer. Then, the state machine moves back to state S2.

TABLE I. VARIABLE DEFINITIONS: BROADCAST

descriptionView Paper arrow_downwardDownload

Security in MPSoCs: A NoC Firewall and an Evaluation Framework

by Polydoros Petrakis

2024, IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems

In multiprocessor system-on-chip (MPSoC), a CPU can access physical resources, such as on-chip memory or I/O devices. Along with normal requests, malevolent ones, generated by malicious processes running in one or more CPUs, could occur.... more

Fig. 2. Range search data structures using register-based parallel search.

Fig. 8. NoC delay for all setups of Table II, when firewall is on (scale is logarithmic).

IMPACT OF THE FINE-GRAIN NOC FIREWALL ON NOC PERFORMANCE AND POWER CONSUMPTION FOR DIFFERENT SCENARIOS IN THE 2CPU2MEM SETUuP. INJECTION RATE Is 0.1 PACKETS PER CYCLE IN EACH CPU. NOC IS SATURATED IN ALL SCENARIOS Fig. 10. NoC firewall implemented in a Xilinx Zynq-7020 FPGA.

Fig. 6. Power consumption at the routers for all setups of Table II, when firewall is on or off.

Fig. 7. NoC delay for all setups of Table II, when firewall is on or off (scale is logarithmic).

Fig. 5. We use different configurations to study the effect of security. We perform experiments for up to 32-nodes connected to STNoC. Case (a) corresponds to two different configurations; either both CPUs or only one CPU can be active. (a) 4-node STNoC. (b) 8-node STNoC.

Fig. 9. Network latency measured from NI-to-NI. Figure illustrates all com- ponents found in the path of a packet transfer; NI source buffering, routers, NI at the destination. We propose integrating the security mechanism at the NI source.

EFFECT OF SECURITY ON QUEUE DELAY, NETWORK DELAY AND POWEI AT THE STNOC LEVEL. SCENARIO CONCERNS 4CPU/4MEM SETUP WITH 1S2M REQUESTS

LATENCY IN CLOCK CYCLES (3.3 ns) FOR READ/WRITE ACCESS USING THE NOC FIREWALL ATTACHED TO AXI4-COMPLIANT BRIDGE ON Zynq7020 FPGA

descriptionView Paper arrow_downwardDownload

Mapping functional behavior onto architectural model in a model driven embedded system design

by Prachi Joshi

2023, Proceedings of the 30th Annual ACM Symposium on Applied Computing

The ever-increasing complexity in embedded systems especially in the automobile industry in the recent years has necessitated model-driven engineering. In this paper, we consider the problem of mapping functional behavior onto an... more

descriptionView Paper arrow_downwardDownload

New voter design enabling hot redundancy for asynchronous network nodes

by Omar Emam

2023, 2014 NASA/ESA Conference on Adaptive Hardware and Systems (AHS)

In this paper, a novel voter design is presented which allows the voting of asynchronous network streams in flow-controlled networks. The voter synchronises incoming data streams automatically and is able to handle failure modes that... more

descriptionView Paper arrow_downwardDownload

Bandwidth Management in Router for DHCP Protocol

by Md. Abdullah Yusuf Imam

2023, International Journal of Scientific & Engineering Research

Network management and Performance management can be categorized as Bandwidth management. The process of administering and managing computer networks are Network management (NM) [1]. Ensuring that goals in an effective and efficient... more

descriptionView Paper arrow_downwardDownload

Model-driven reliability evaluation for MPSoC design

by Tien Thanh Nguyen

2023, 2017 Conference on Design and Architectures for Signal and Image Processing (DASIP)

When designing a Multi-Processor System-on-Chip (MPSoC), a very large range of design alternatives arises from a huge space of possible design options and component choices. Literature proposes numerous Design-Space-Exploration (DSE)... more

descriptionView Paper arrow_downwardDownload

Collaborative Routing Algorithm for Fault Tolerance in Network on Chip CRAFT NoC

by chakib nehnouh

2023, International Journal of Advanced Computer Science and Applications

Many fault tolerance techniques have been proposed in Network on Chip to cope with defects during fabrication or faults during product lifetime. Fault tolerance routing algorithm provide reliable mechanisms for continue delivering their... more

descriptionView Paper arrow_downwardDownload

Model-driven reliability evaluation for MPSoC design

by tien thanh nguyen

2023, 2017 Conference on Design and Architectures for Signal and Image Processing (DASIP)

When designing a Multi-Processor System-on-Chip (MPSoC), a very large range of design alternatives arises from a huge space of possible design options and component choices. Literature proposes numerous Design-Space-Exploration (DSE)... more

descriptionView Paper arrow_downwardDownload

A Review: Latency Comparison Between 2D Noc and 3D Noc

by Dr.Sarika Khandelwal

2023, Journal of emerging technologies and innovative research

3D integration technologies gives new opportunities for Network-on-chip architecture. Customized NoCs are the need of today’s SoCs as they offer optimized quality of service and enhanced performances because they are designed to support... more

Figure1: Comparison of Latency between optimized mapping same sized 3D and 2D Mesh topologies with similar traffic conditions The graph plotted in in fig.1 clearly shows that average latency per flit has reduced by a reasonable amount in the intelligently mapped 3D Mesh NoC in comparison to intelligently mapped 2D Mesh NoC as well.

descriptionView Paper arrow_downwardDownload

New voter design enabling hot redundancy for asynchronous network nodes

by Jørgen Ilstad

2023, 2014 NASA/ESA Conference on Adaptive Hardware and Systems (AHS)

In this paper, a novel voter design is presented which allows the voting of asynchronous network streams in flow-controlled networks. The voter synchronises incoming data streams automatically and is able to handle failure modes that... more

descriptionView Paper arrow_downwardDownload

Evaluating The Short Comings of Edge Detection Techniques

by Parul Anand

2023

Edge detection is one of the imperative concerns of vision transforming, in this paper; various traditional edge detection techniques are explored. Edge detection segments a given image where more honed change exists i.e. the limits of... more

descriptionView Paper arrow_downwardDownload

Runtime fault recovery protocol for NoC-based MPSoCs

by Fernando G . Moraes

2022, Fifteenth International Symposium on Quality Electronic Design

 Permanent faults on the interconnect network can stall or crash applications even though the network has alternative fault-free paths to a given destination.  The proposed approach determines new paths quickly, and the costs of extra... more

descriptionView Paper arrow_downwardDownload

An MDE Approach for Energy Consumption Estimation In MPSoC Design

by Smail Niar

2022

An MDE Approach for Energy Consumption Estimation in MPSoC Design Chiraz Trabelsi INRIA Lille Nord Europe France [email protected] Samy Meftali INRIA Lille Nord Europe France [email protected] Rabie Ben Atitallah INRIA Lille Nord... more

descriptionView Paper arrow_downwardDownload

Exploring the Impact of Soft Errors on NoC-based Multiprocessor Systems

by Geancarlo Abich

2022, 2018 IEEE International Symposium on Circuits and Systems (ISCAS)

Software reliability is an essential design metric in emerging large-scale multiprocessor embedded systems. Designers should identify soft error susceptibility of multiple applications executing in parallel early in the design time to... more

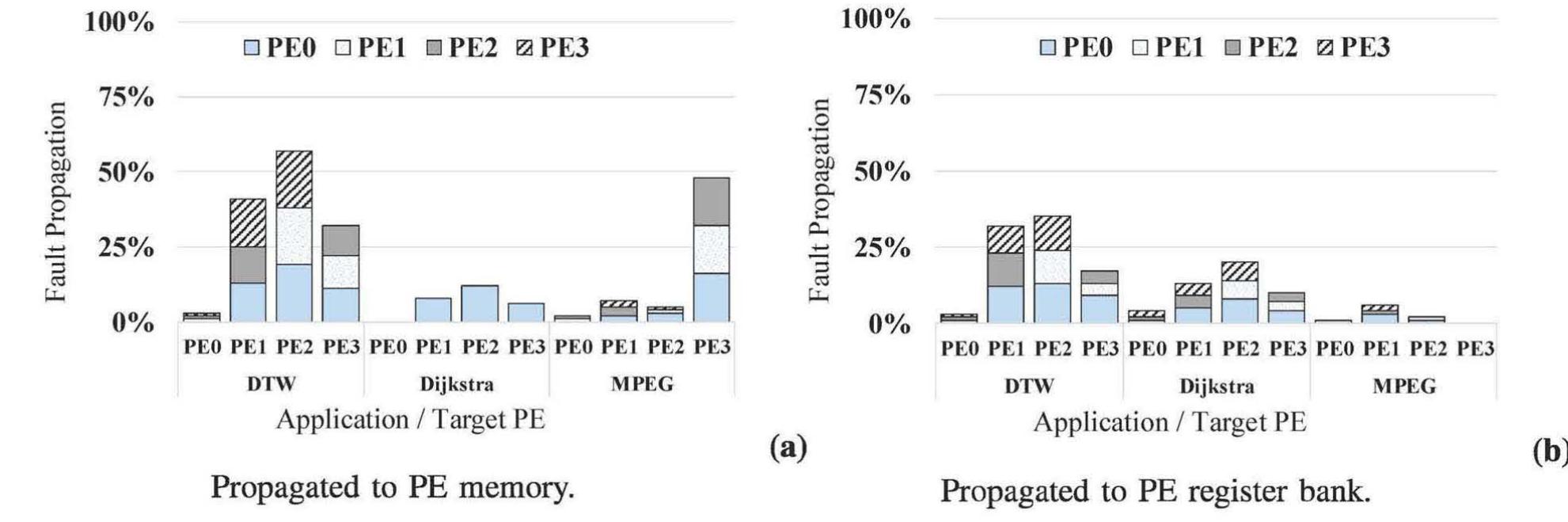

Fig. 6: Fault propagation to other PEs when injecting faults at a target PE.

Fig. 3: Task graph and mapping (color/fill) for all applications. PEC is the manager processor, not executing applications’ tasks. The experiments adopt a 2x2 HeMPS platform, with four PEs. From those, one is the MP (PEO) and the remaining SPs (PE1, PE2, and PE3), which are able of executing two tasks simultaneously. The experiments consider three applications: DTW, Dijkstra, and MPEG. The MP maps the applications’ tasks onto the SPs. Fig. 3 presents the task graph of each application, as well as their task mapping. Each application is evaluated separately, with the injection of a single-bit flip per simulation. Moreover, the experiments consider that faults can be injected in any of the available PEs individually.

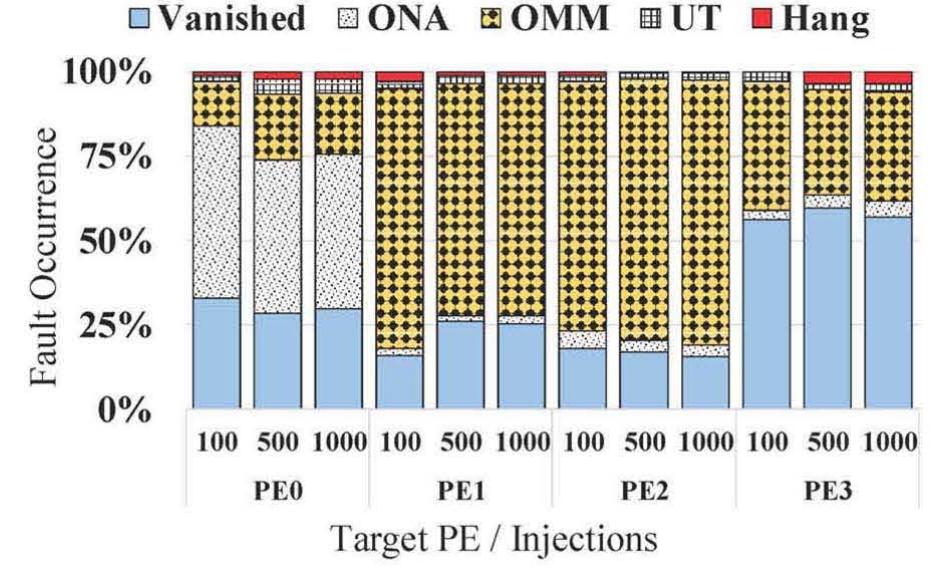

Fig. 4: Evaluation of fault occurrence precision according to the number of fault injection simulations (executed application: MPEG).

Fig. 5: Fault injection campaign results grouped according to where the fault is injected (PE) for each application: (I) DTW, (I) Dijkstra, and (II) MPEG.

descriptionView Paper arrow_downwardDownload

An MDE Approach for Energy Consumption Estimation In MPSoC Design

by jean-luc Dekeyser

2022

An MDE Approach for Energy Consumption Estimation in MPSoC Design Chiraz Trabelsi INRIA Lille Nord Europe France [email protected] Samy Meftali INRIA Lille Nord Europe France [email protected] Rabie Ben Atitallah INRIA Lille Nord... more

descriptionView Paper arrow_downwardDownload

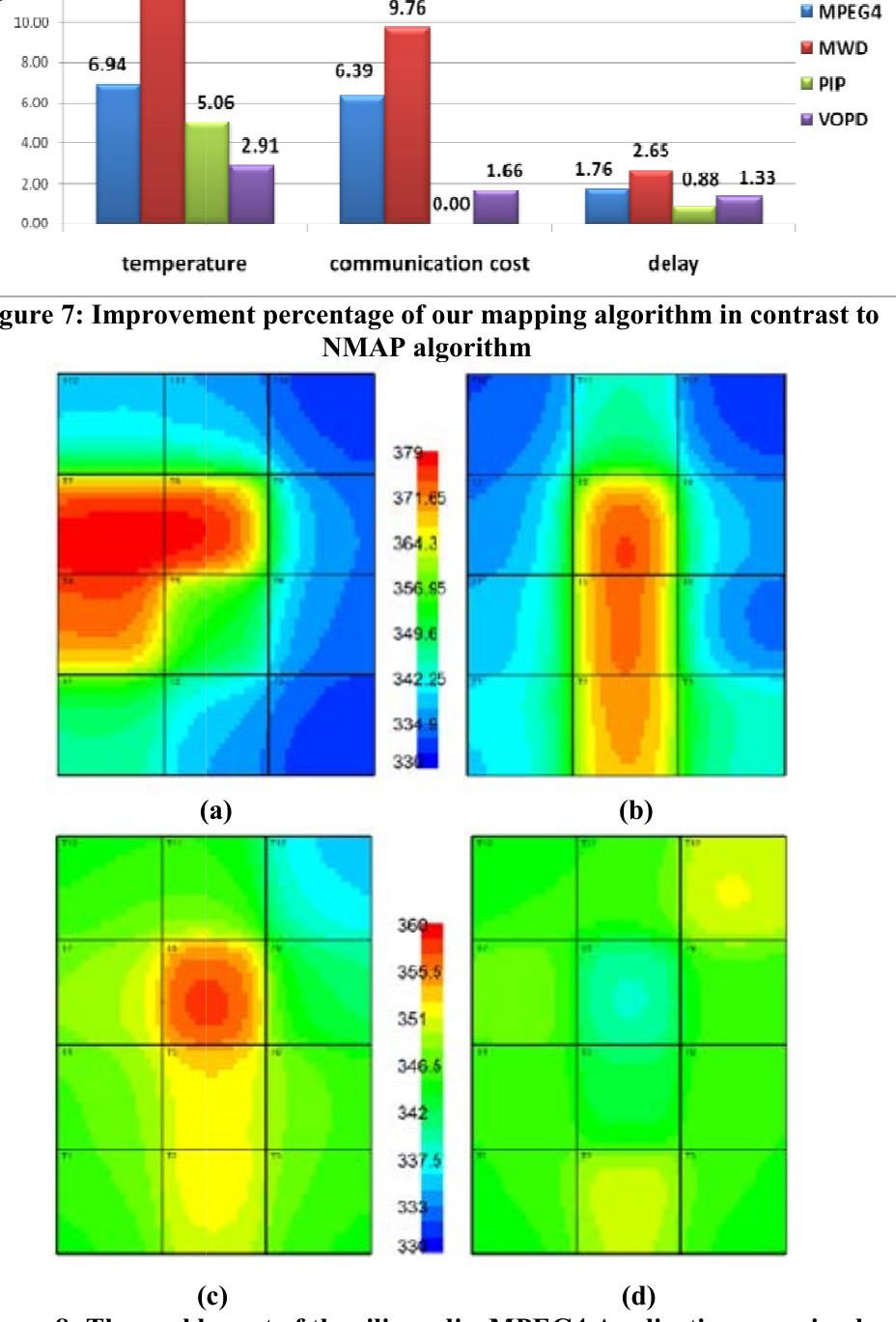

An optimized hybrid algorithm in term of energy and performance for mapping real time workloads on 2d based on-chip networks

by Muhammad Khalil Afzal

2022, Applied Intelligence

In this paper, we propose an optimized, search based near-optimal mapping heuristic, named as ONMAP for mapping real time embedded application workloads on 2D based on-chip interconnection network platforms. ONMAP exploits NMAP, a... more

descriptionView Paper arrow_downwardDownload

A Review: Latency Comparison Between 2D Noc and 3D Noc

by Dr. Mayank Patel

2022

3D integration technologies gives new opportunities for Network-on-chip architecture. Customized NoCs are the need of today’s SoCs as they offer optimized quality of service and enhanced performances because they are designed to support... more

descriptionView Paper arrow_downwardDownload

An Efficient Algorithm for Mapping Real Time Embedded Applications on NoC Architecture

by Dr. Tariq Umer

2022, IEEE Access

Network-on-chip (NoC) has appeared to be an impending substitute for the communication paradigm in modern very large scale integration embedded systems. Apart from many design challenges, application mapping on the NoC system is one of... more

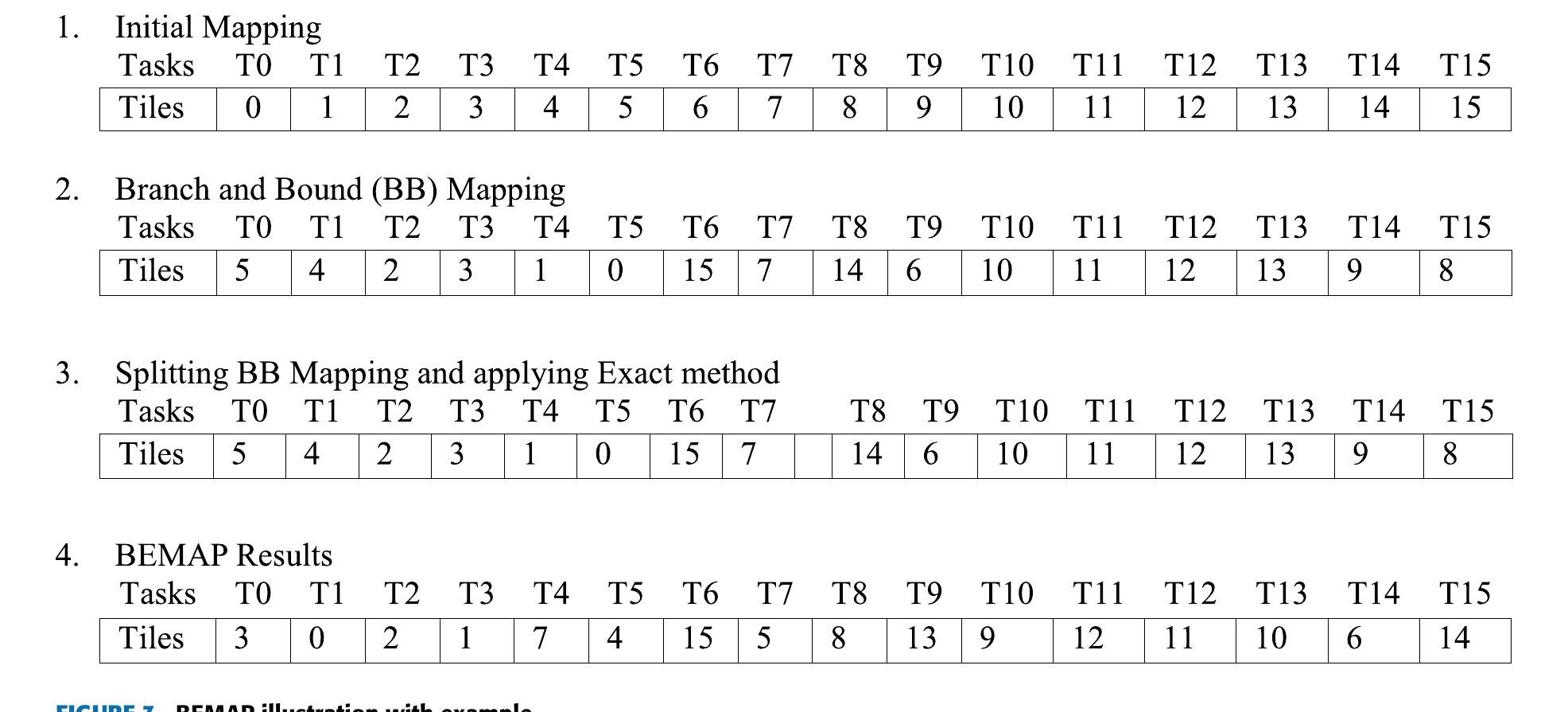

FIGURE 4. Mapping of Context Adaptive Variable Length Coding (CAVLC) application on NoC architecture, with BEMAP algorithm

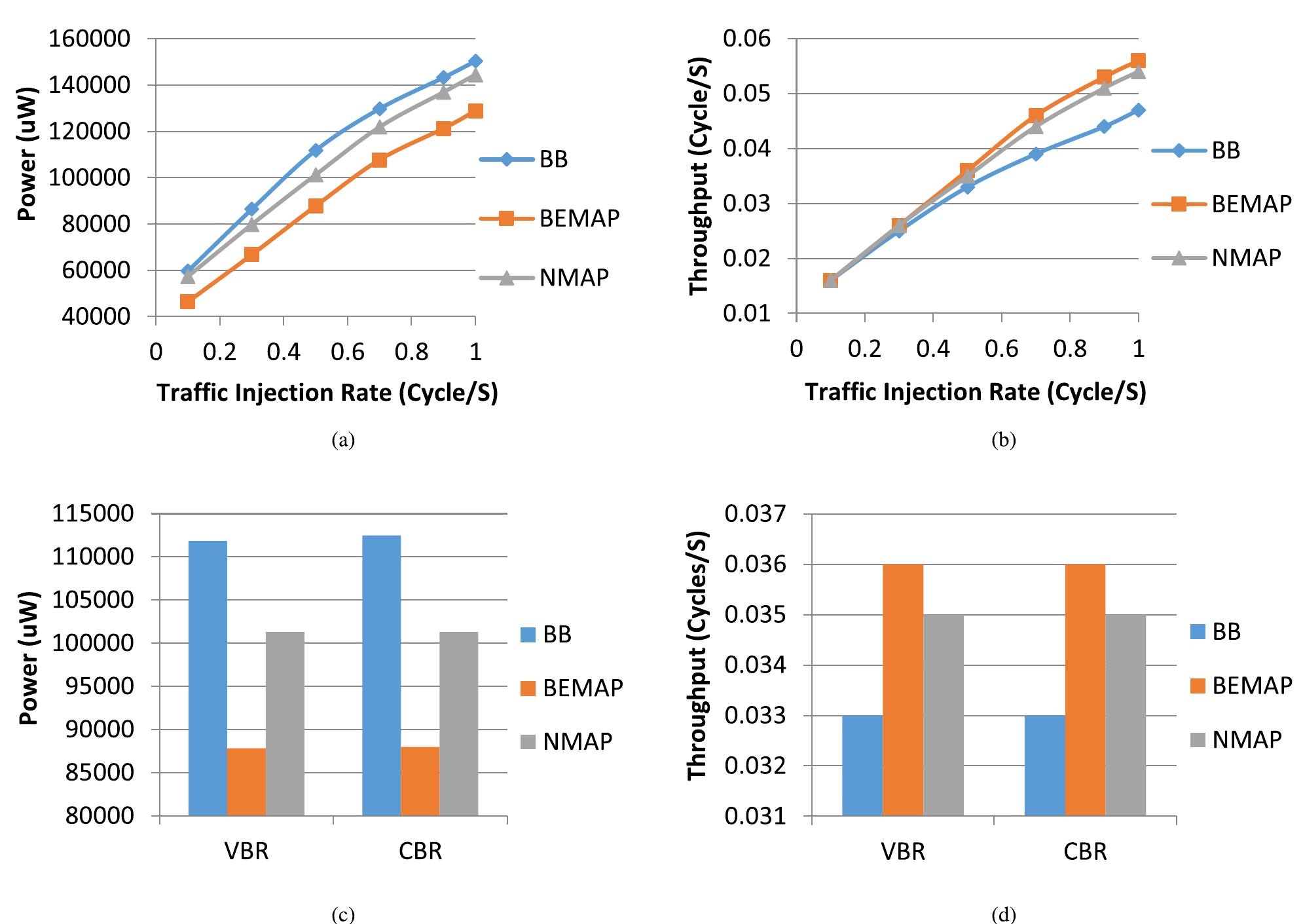

FIGURE 7. Performance comparison of BEMAP algorithm with traffic workloads. (a) Power versus traffic injection rate. (b) Throughput versus traffic injection rate. (c) Power versus CBR and VBR traffic. (d) Throughput versus CBR and VBR traffic.

TABLE 1. Platform description for simulation environment. applications are collected from literature and used for the analysis and evaluation of BEMAP algorithm [9], [22].

FIGURE 5. NoC performance parameters of 2D mesh topology, normalized to BB. (a) Network power consumption. (b) Network communication cost. (c) Network latency. (d) Network throughput.

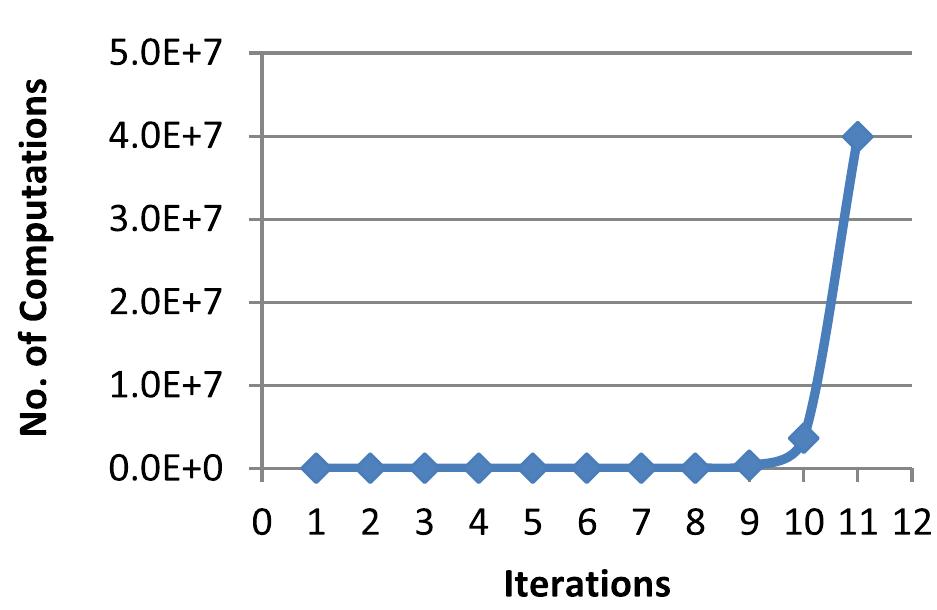

FIGURE 2. Reduction in simulation speed with system size.

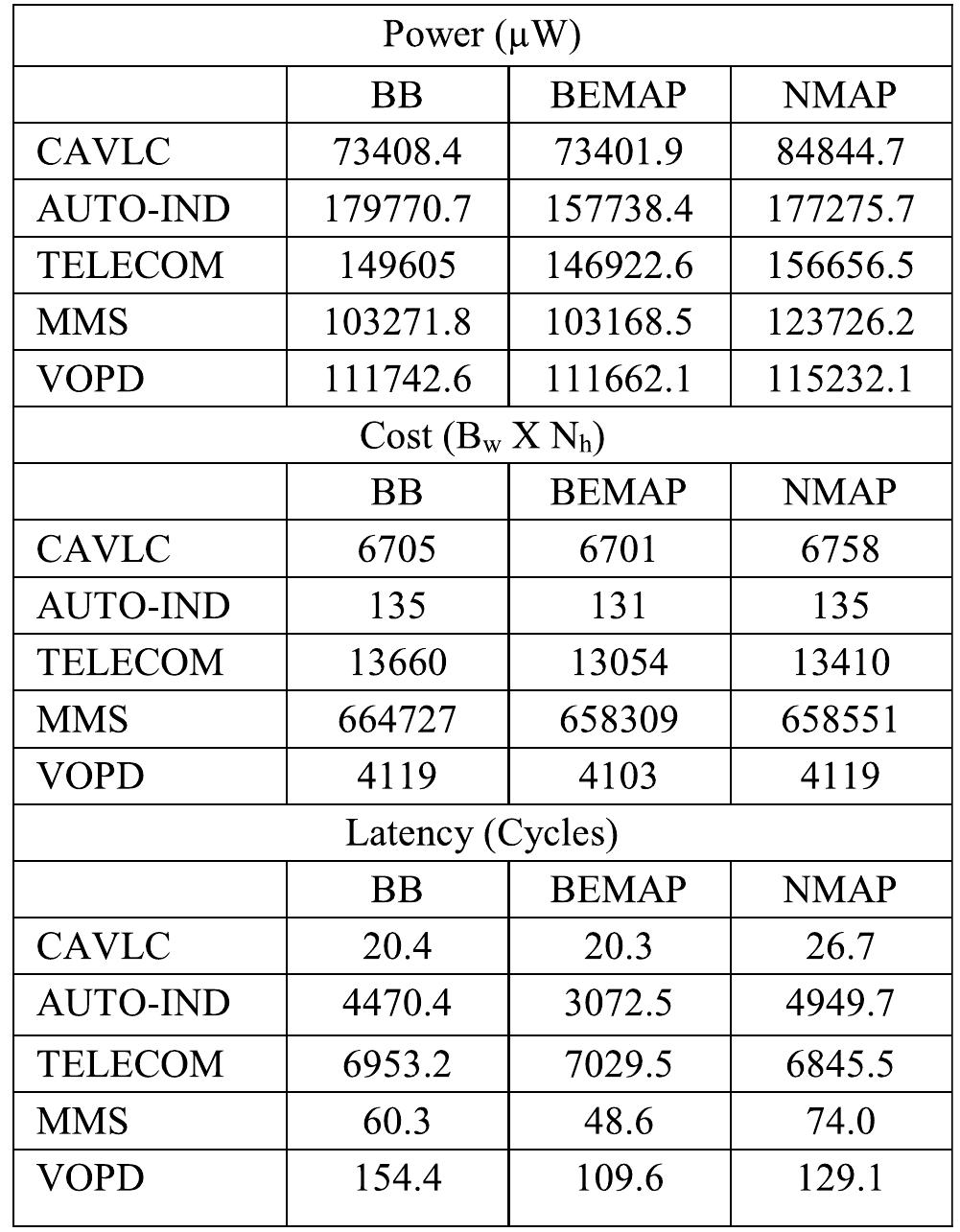

TABLE 5. Network power, communication cost and latency of torus topology.

TABLE 2. Network power, communication cost and latency of 2D mesh topology. The absolute values in Table 2 show that BEMAP per- forms better as compared to BB and NMAP algorithms and produces improved results for the network power consump- tion and communication cost. BEMAP has 0.83%, 13.97%, 1.83%, and 0.29% improvement in power consumption than BB under CAVLC, AUTO-IND, TELECOM, MMS and VOPD applications, respectively as shown in Table 3. The

TABLE 7. Simulation time and network throughput of torus topology. BEMAP algorithm is very impressive that goes up to 45.50% and 61.10% as compared to BB and NMAP algorithms, respectively. The improvement in latency is due to the inher- ent characteristics of the bypass links in the torus topology.

TABLE 3. Network power, communication cost and latency savings of 2D mesh topology. TABLE 4. Simulation time and network throughput of 2D mesh topology.

TABLE 6. Network power, communication cost and latency savings of torus topology. to the NMAP algorithm. The communication cost savings are up to 4.64% and 3.05% for BB and NMAP algorithms, respectively. The latency improvement by the application of

descriptionView Paper arrow_downwardDownload

Application Mapping using Cuckoo Search Optimization with Lévy Flight for NoC based system

by Fawad Hussain

2022, IEEE Access

Network on chip (NoC) is a promising communication infrastructure for multiple cores on a chip to exchange data efficiently. In such NoC architecture, application mapping is the process of assigning tasks to the processing cores. An... more

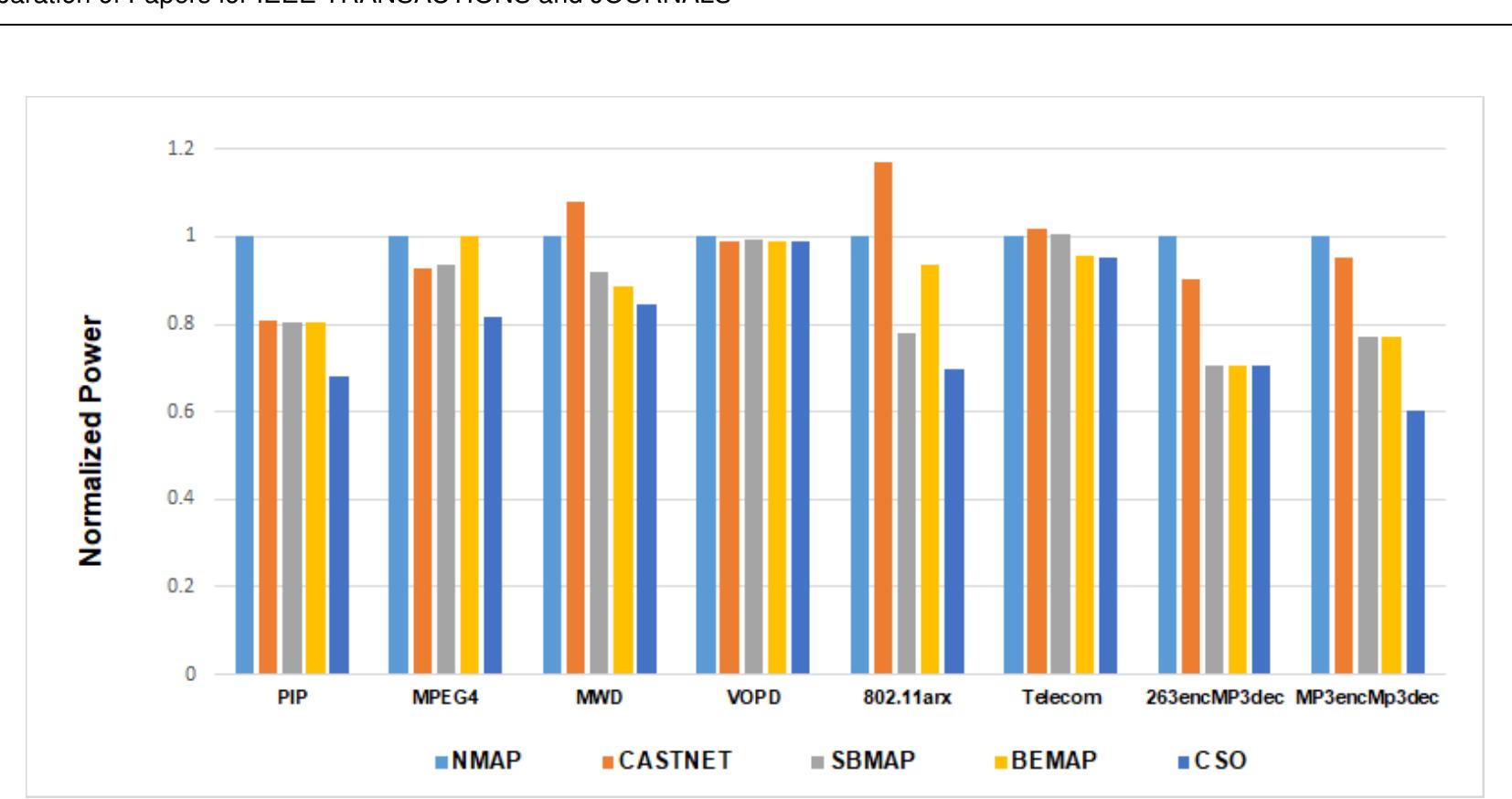

FIGURE 6: Throughput vs Flit Injection Rate network. Throughput of the network is calculated using (5) with NoCtweak. We have compared the throughput of the proposed algorithm with existing heuristics for standard ap- plications with different injection rates. Figure 6a-d represent the performance of throughput for different flit injection rates in the network. The results show that the proposed algorithm gives better throughput than NMAP, CastNet, SBMAP, and BEMAP at a higher traffic injection rate in most cases. VI. CONCLUSION In this paper, we have proposed a Cuckoo Search Optimiza- tion algorithm for the application mapping problem on the NoC systems. CSO algorithm is inspired by obligate brood parasitism of some cuckoo species by laying their eggs in the nests of other host birds and the Levy Flight behavior of some birds and fruit flies. In this technique, the initial population is generated with a Greedy random algorithm which is then optimized iteratively by applying Cuckoo Search via Lévy

Author et a/.: Preparation of Papers for IEEE TRANSACTIONS and JOURNALS This article has been accepted for publication in a future issue of this journal, but has not been fully edited. Content may change prior to final publication. Citation information: L EE AnaAaAcmre 10.1109/ACCESS.2021.3120079, IEEE Access (d) mp3encmp3dec

TABLE 2: Rectangular mesh size. for MPEG4 is 2.94% for NMAP, 5.75% for GA, 7.99% for CastNet, 25.43% for SBMAP, and 5.76% for BEMAP. For MWD, CSO has 17.14% better results in cost than NMAP, 17.95% than GA, 14.29% than CastNet, SBMAP, and BE- MAP 0.18% than SCSO algorithm. CSO also perform: than PSO and SCSO in some applications. For exam s better ple, for DVOPD, CSO has 2.42% savings in cost compared to PSO and 0.18% compared to SCSO for MWD application. On average, CSO has an improvement of 11.02% over NMAP, 5.33% over GA, 4.28% over CastNet, 5.95% over S BMAP, 2.16% over BEMAP, 0.30% over PSO, and 0.03% over SCSO algorithm. BEMAP performs better in 802.1 larx and CAVLC applications but has more computation time t proposed algorithm. han the

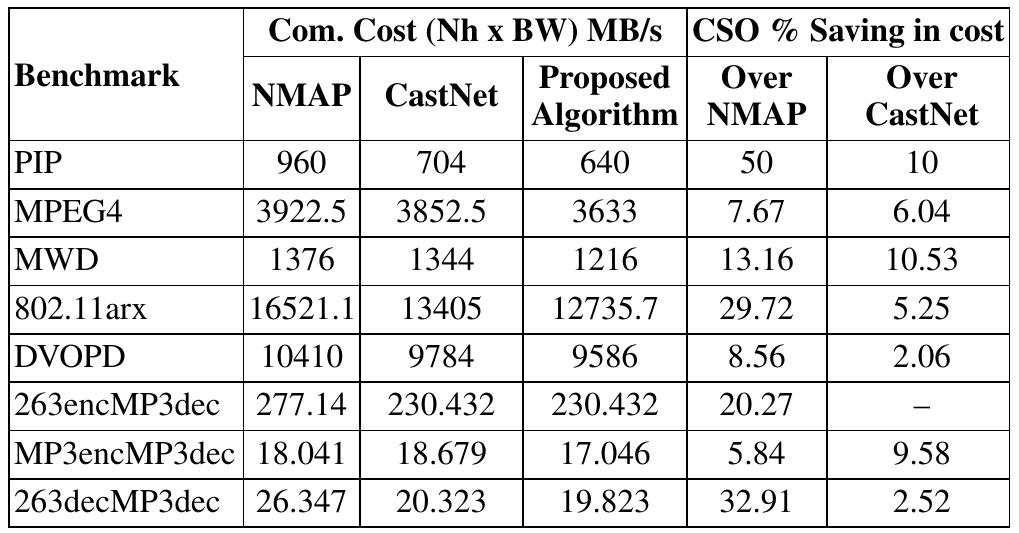

TABLE 5: CSO saving in communication cost for rectangular mesh (%).

TABLE 1: Square mesh size. The Greedy algorithm is leveraged to generate the ini- tial population by placing maximum communicating tasks in close vicinity. In the initial population, a relatively pre- processed base is furnished to the main algorithm, and Lévy flight is utilized as a local search strategy which eventually provides the foundation for the fast convergence of the al- gorithm. Moreover, the probability of worst solutions P,, abound balances the global and local search, which implicitly generates new quality solutions as the algorithm progresses iteratively. Therefore, the CSO algorithm provides an optimal solution against each benchmark in relatively low computa- tional overhead, which makes the proposed algorithm more efficient among other state-of-the-art algorithms.

Author et al/.: Preparation of Papers for IEEE TRANSACTIONS and JOURNALS In light of these rules, cuckoo search via Lévy flight can be potted as the flow chart in Figure 1. Lévy flight is applied to generate a new solution x**1 for the i“” cuckoo, is represented as

FIGURE 2: Generation of i” nest in initial population for PIP benchmark. this article has been accepted for publication in a future issue of this journal, but has not been fully edited. Content may change prior to final publication. Citation information: I Cc i= A rraAom 10.1109/ACCESS.2021.3120079, IEEE Access Algorithm |. The fitness of newly built nests is evaluated, and the best solution is updated accordingly. This procedure is repeated until maximum criteria are achieved. The proposed CSO mapping algorithm is implemented in the SystemC- based NoCtweak simulator to assess and analyze the results. Algorithm 2: Cuckoo search via Lévy flight.

TABLE 4: CSO saving in communication cost for square Mesh.

TABLE 3: Communication cost for square mesh. TABLE 6: CSO saving in computation overhead. Author et a/.: Preparation of Papers for IEEE TRANSACTIONS and JOURNALS

CSO algorithm saves computation overhead from existing bio-inspired algorithms like GA, PSO, and SCSO. Compu- tation time savings of the proposed algorithm for VOPD, MPEG4, MWD, 263encMP3dec, MP3encMP3dec and 263decMP3dec are 121.75%, 169.5%, 202.65%, 242.47%, 172.99%, and 223.88% respectively, in comparison with GA. Savings of CSO in computation time with respect to PSO are 113.84%, 188.75%, 203.72%, 242.47%, 172.99%, and 225.31% for above mentioned applications. Likewise, the computation time savings of CSO over SCSO are 26.04%, 67.5%, 76.64%, 64.19%, 52.56% and 54.18% respectively for these standard benchmarks.
